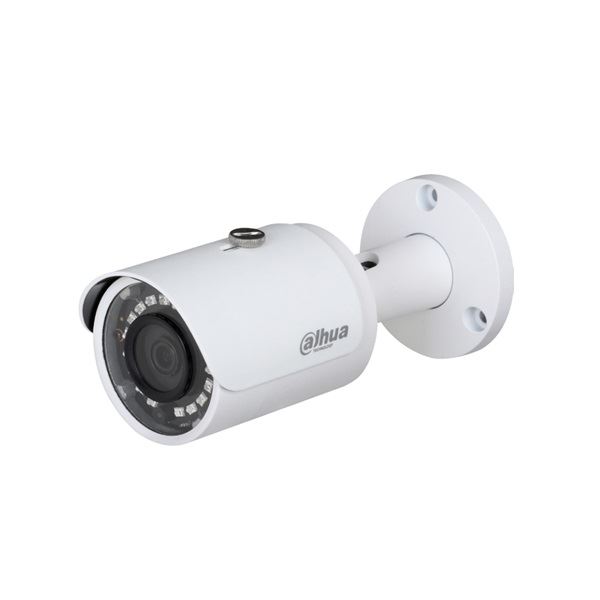

Dahua IP bullet kamera (IPC-HFW1230S-0280B-S5)

Camera

Image Sensor

1/2.7 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.08Lux/F2.0( Color, 1/3s, 30IRE)

0.3Lux/F2.0( Color, 1/30s, 30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

18

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm (3.6 mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:104°/92°, V:55°/50°

Focus Control

Fixed

Close Focus Distance

0.6m(0.9m)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

40(131ft)

16(52ft)

8(26ft)

4(13ft)

3.6 mm

53(174ft)

21(69ft)

11(36ft)

5(16ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H. 265/H. 264H/MJPEG(Sub Stream)

Smart Codec

Support H. 265+/H. 264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480 )/ VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H. 265: 12K ~ 6400Kbps

H. 264: 32K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image

Support

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP ;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS; UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;

TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V,  PoE (802.3af)(Class 0)

Power Consumption
